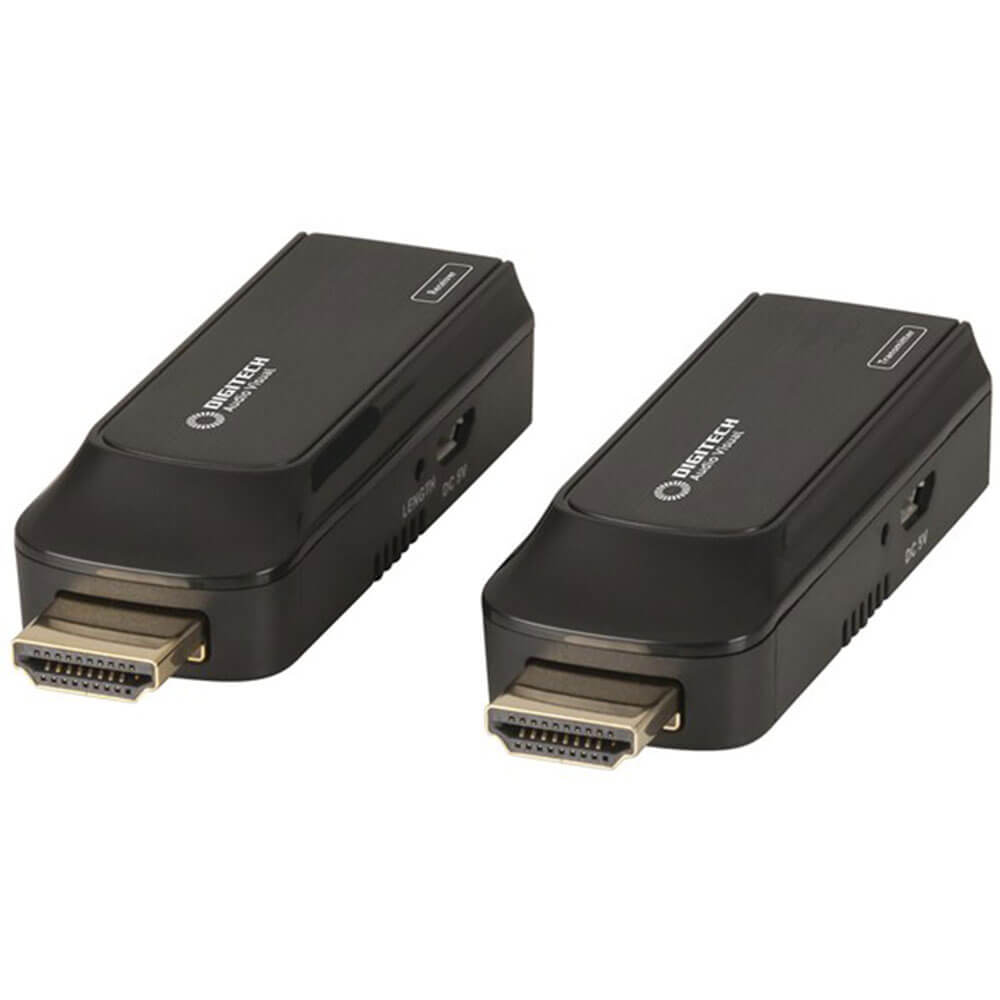

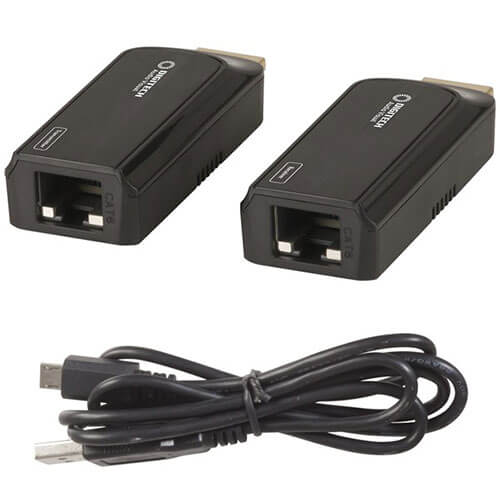

These mini extenders plug straight into the HDMI sockets on the source and receiver, allowing you to run your full 1080p HDMI signal up to 50m! Cat6 cable is recommended for longer distance, however will work with Cat5e cables over shorter lengths too. The receiver uses Power-Over-Cable (PoC) technology so it receives its power from the transmitter using the Cat5e/Cat6 ethernet cable. Includes USB Micro B power cable and USB mains power adaptor. Features: . 50m(Cat6), 40m (Cat5e) Transmission Range . Power Over Cat5e/Cat6 Cable (PoC) . HDCP & 3D Support . Adjustable Equaliser Specifications: Transmission Distance: Up to 50m (Cat6) Up to 40m (Cat5e) HDMI: 1.3a HDCP: 1.4 Resolution: Up to 1080p (1920 x 1080) @ 50/60Hz Video Bandwidth: 4.95Gbps Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+ Colour Depth: 8-bit Power: 5VDC, 1A (Transmitter) Power Consumption: 600mA (Max) Dimensions: 62(L) x 25(W) x 15(H)mm (Each)
Product Specifications
- Length : 62.0mm
- Width : 25.0mm
- Height : 15.0mm
- PSU Powers : Main Product
- DC Plugpack Voltage : 5.0V
- DC Current Draw : 600.0A
- Supported Display Resolution : 1080p (1920 x 1080)
- HDMI Version : 1.3a
- HDCP Version : 1.4
- Switcher/Converter Type : Balun Extender
- Input type : HDMI
- Input Connection : HDMI Type-A
- Output Type : HDMI
- Output Connection : HDMI Type-A
- Power Requirement : External Power Required
- Length : 13.6 cm
- Width : 10 cm
- Height : 5.2 cm
