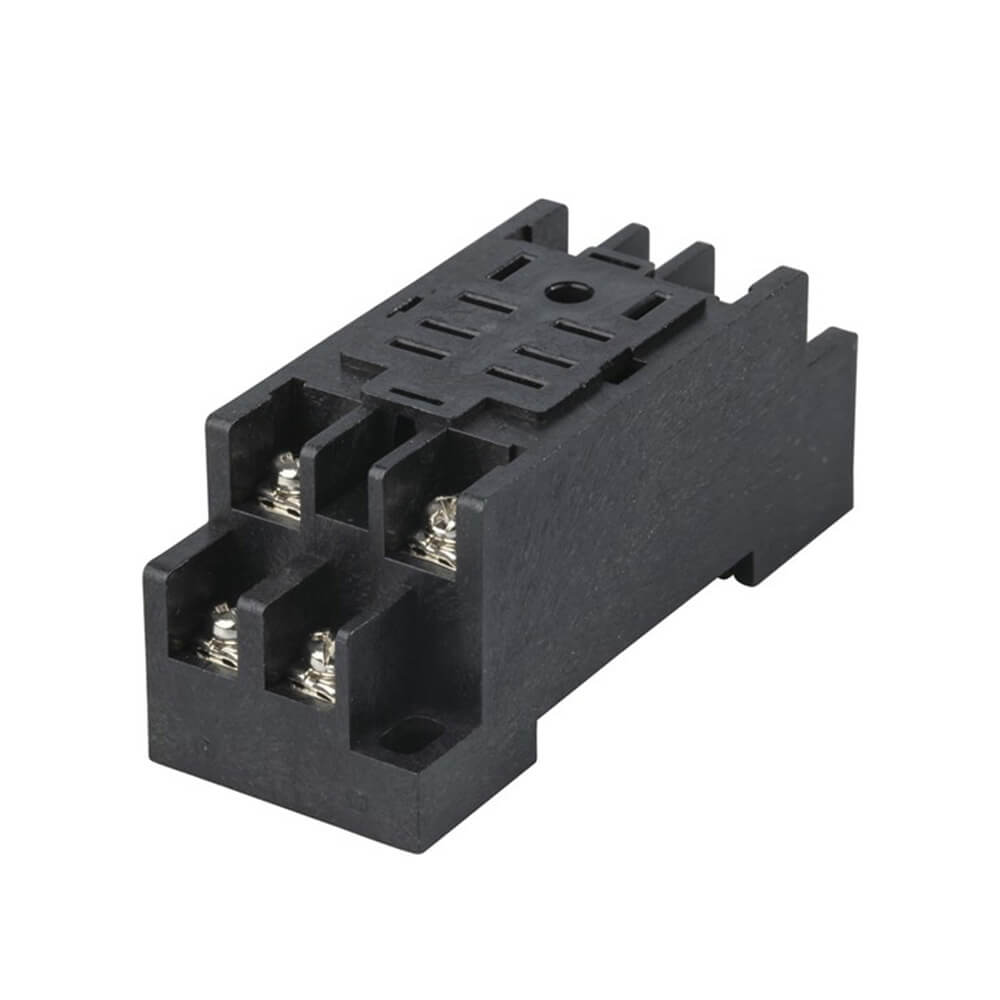

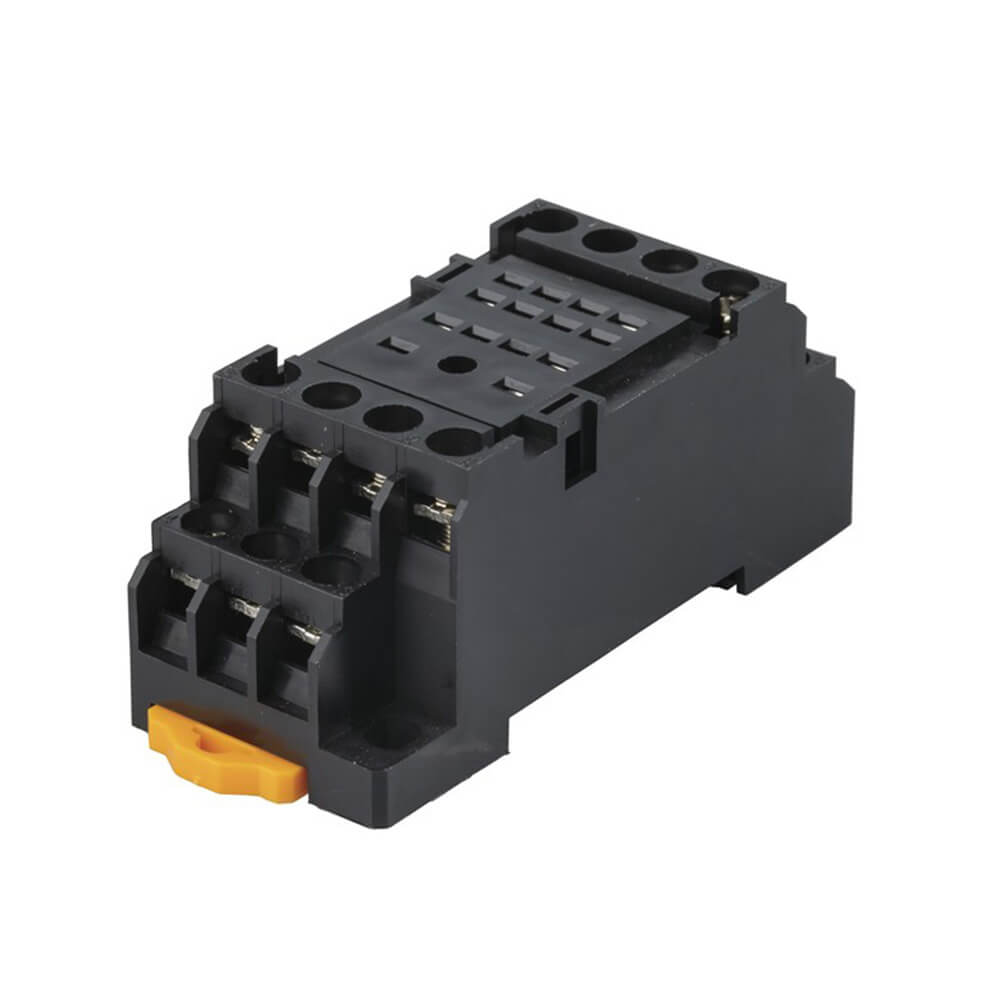

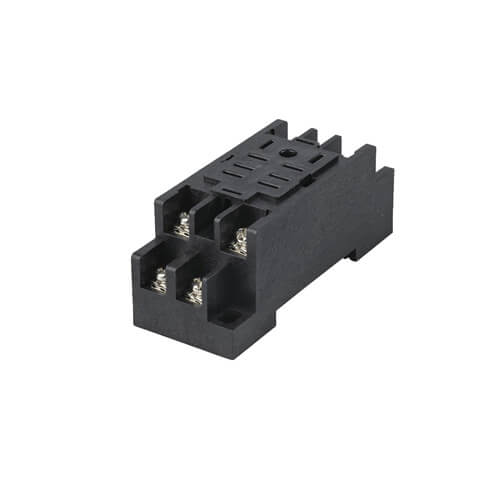

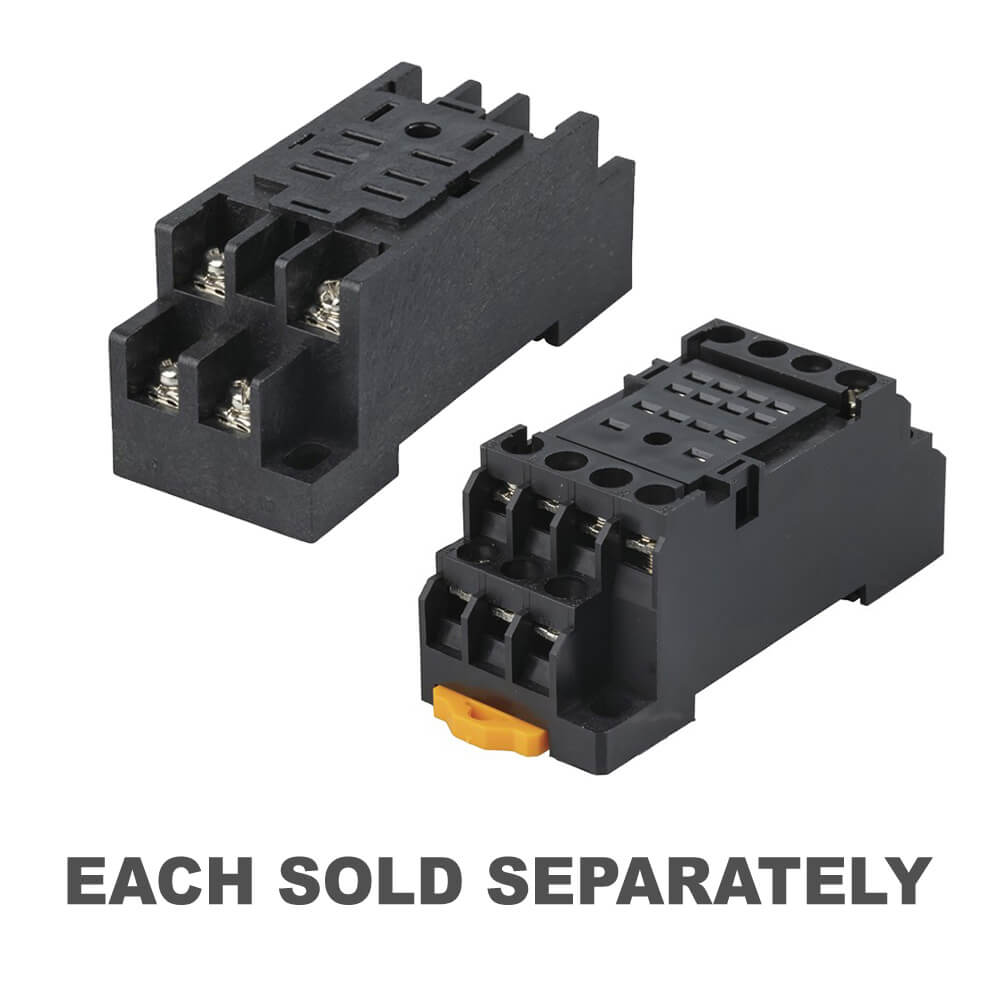

DIN Rail Mount Relay Cradle

DIN rail mounting base for 4PDT cradle mount relays including SY-4009 12VDC 4PDT relay. Also has 4mm holes so can be screw mounted to a chassis.

Product Specifications

• Length : 72mm
• Width : 30mm
• Height : 30mm
• Item connection : Screw Terminals
• Mounting Method : ChassisDIN Rail Mount
• Attachment / Securing Method : Screw Down
• Overall Screw Spacing (H) : 22mm
• Overall Screw Spacing (V) : 59mm
• Packaged Volume : 0.07l
• Packaged Weight : 0.06kg
• Packaged Length : 7.5cm
• Packaged Width : 3cm
• Packaged Height : 3cm
• Device Type : Cradle Socket for Relays
• Contact format : 4PDT

• Length : 7.5 cm
• Width : 3 cm
• Height : 3 cm
