ABS Solar Panel Mounting Brackets Pair (White)

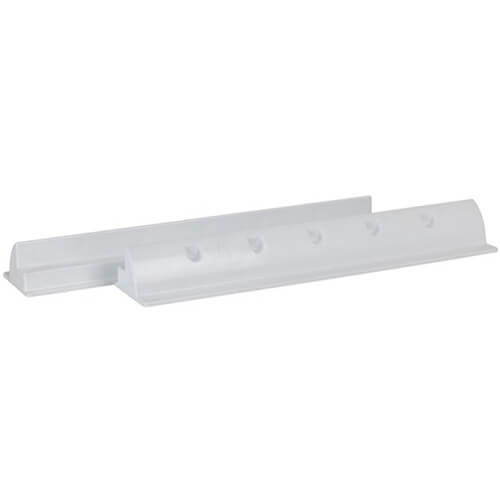

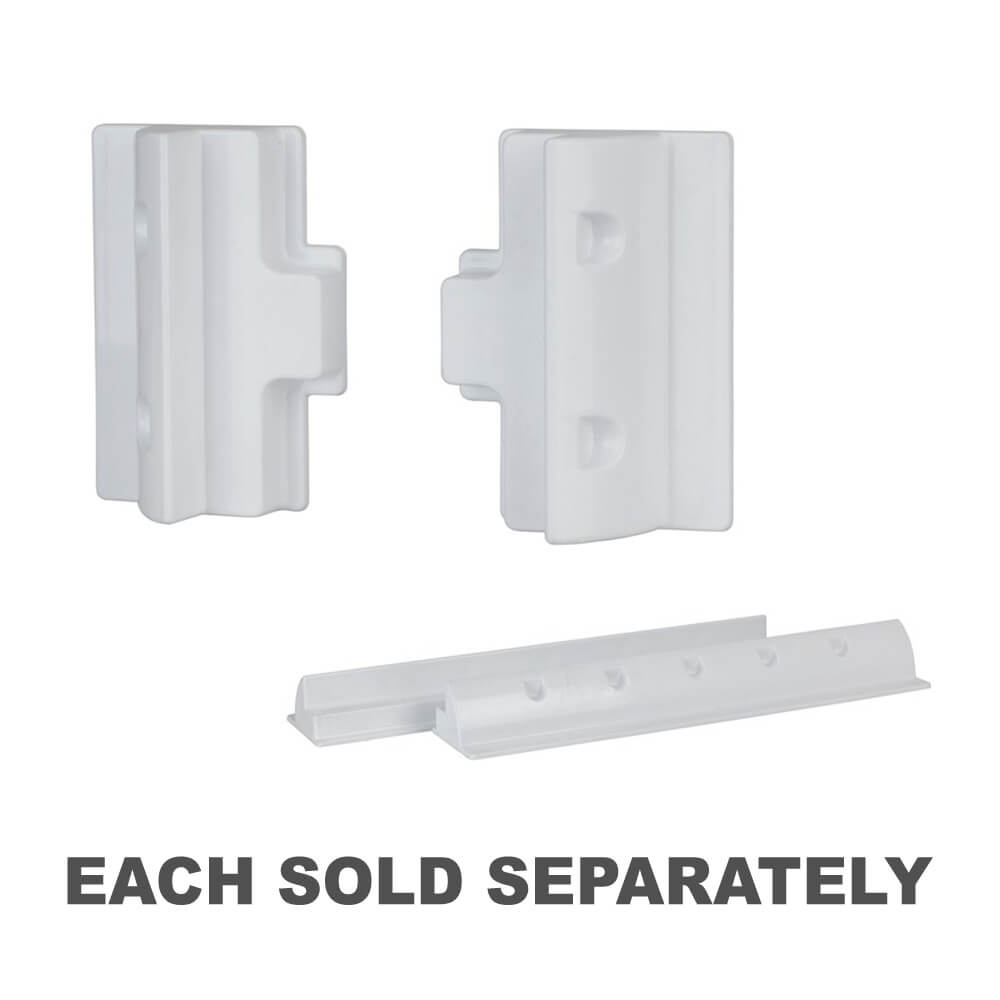

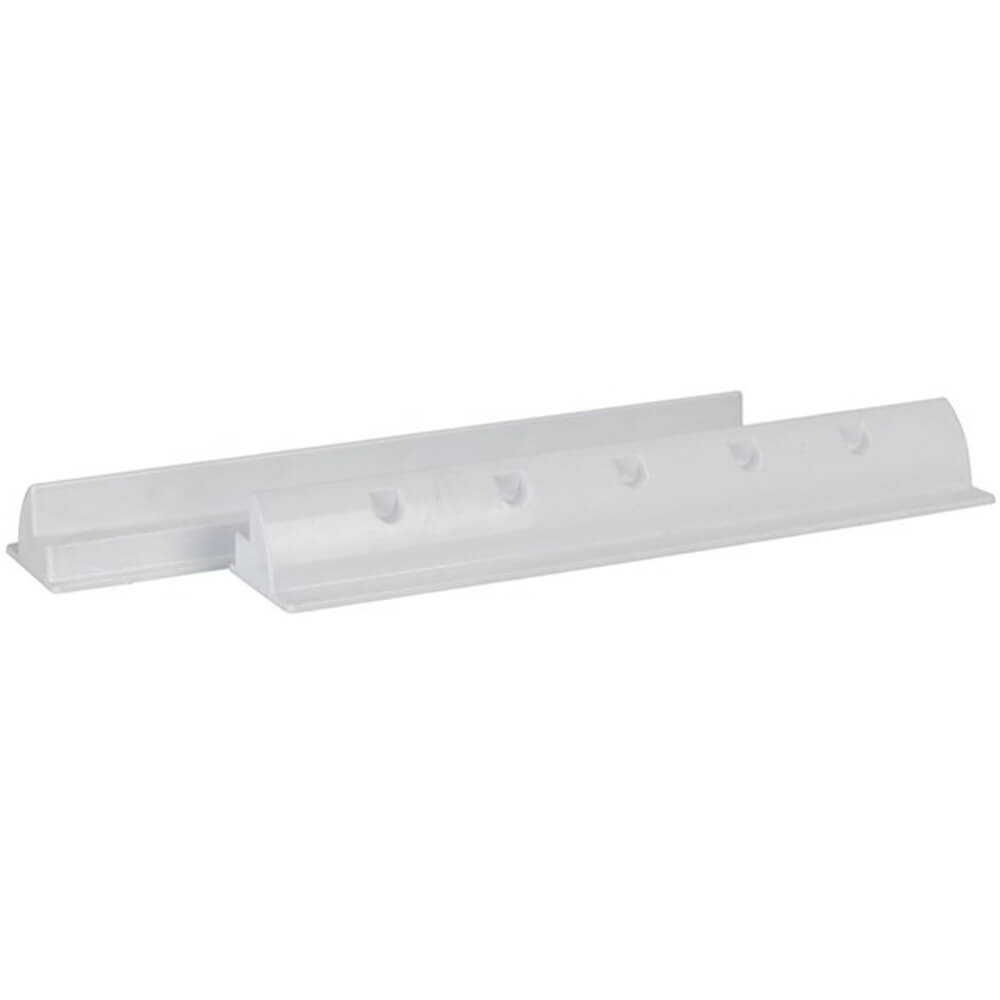

Attaching solar panels to the roof of your caravan or the deck of your boat may sound like a relatively straight forward procedure - if you are happy to drill holes. If you've just sunk tens of thousands of dollars into your caravan or boat, that's probably the last thing you want to do, which is why we have introduced this range of ABS solar panel mounts. Quite simply, you stick these heavy duty ABS plastic mounts onto your caravan or boat using Sikaflex(R), and then screw your panel onto the mount. The solar panel is kept with adequate space underneath for cooling, and the curved design ensures adequate wind deflection for high winds. There are 4 different products, which can be used in any combination to suit your specific application.

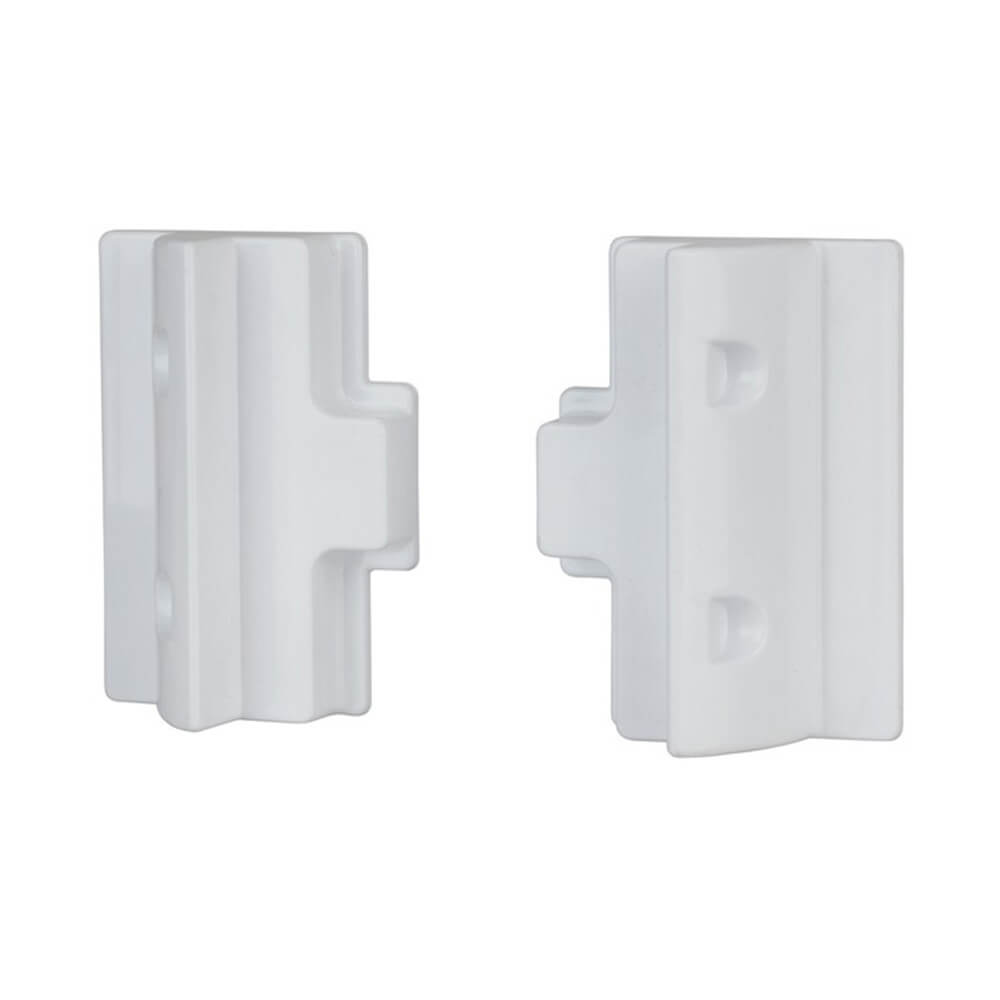

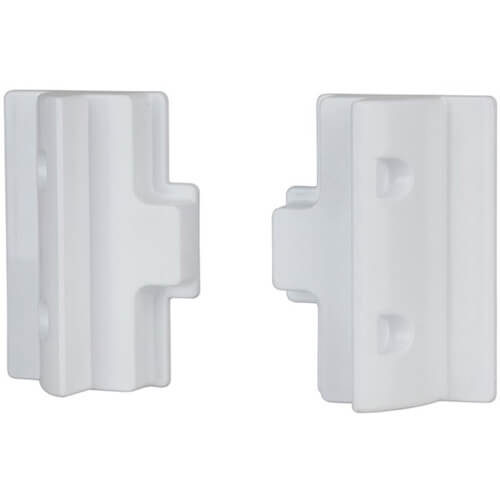

ABS Solar Panel Side Mounts, 180mm, HS-8862

This pair of side mounts are intended to be attached to the long edge of taller solar panels, such as 80W and above, adding extra mounting strength and giving more wind deflection.

Product Specifications

• Length : 180mm
• Width : 120mm
• Height : 65mm
• Mounting Method : Screw Down Bracket
• Attachment / Securing Method : Screw Down
• Packaged Volume : 3.59l
• Packaged Weight : 0.52kg
• Packaged Length : 22.5cm
• Packaged Width : 20.2cm
• Packaged Height : 7.9cm

• Length : 22.5 cm
• Width : 20.2 cm
• Height : 7.9 cm
